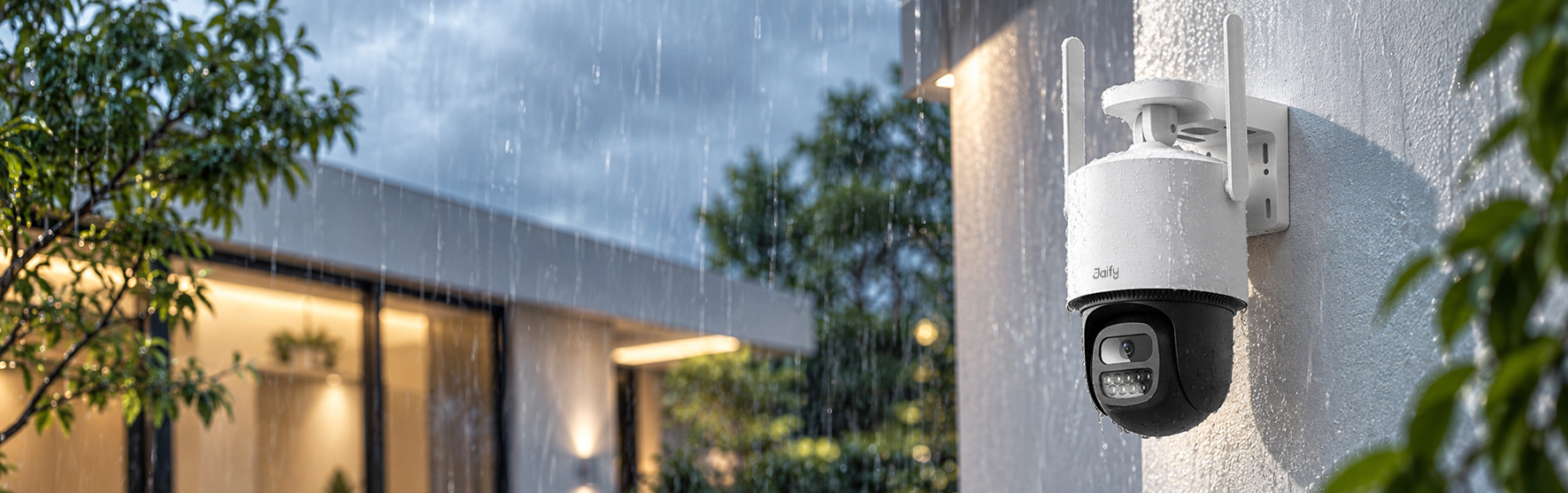

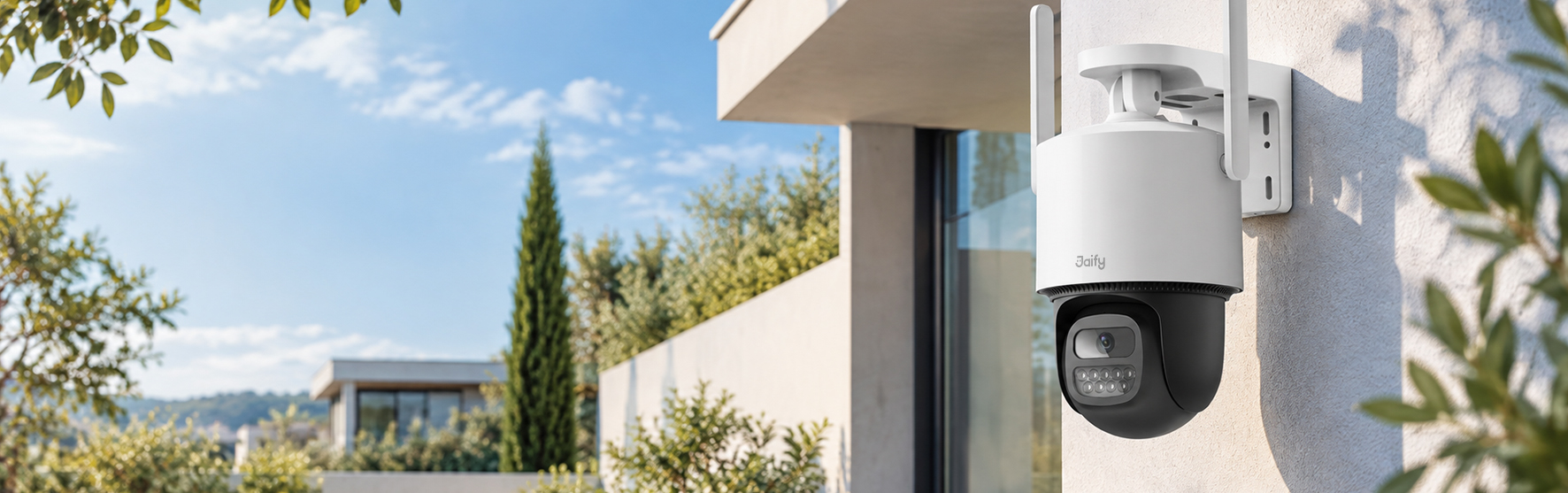

Outdoor Wi-Fi PT Camera

Products Comparison

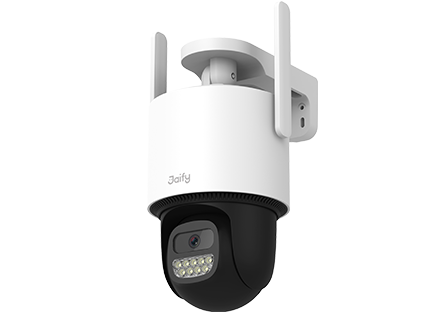

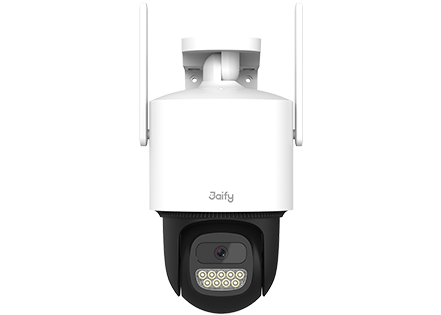

S2-3WL

Resolution: 2K(3MP)
Image Sensor: 1/2.9" High-performance Sensor
Lens: 4mm@F1.6
FOV: Diagonal: 95°, Horizontal: 79°, Vertical: 42°
Fill Light: 9*850nm IR fill lights&9*white led fill lights
Night Vision: Full-color/Infrared/Dual-light alert
Recording Storage: Local TF card storage; Cloud storage
Voice Intercom: Two-way voice intercom
Max. Resolution: 2304*1296
Frame Rate: 20 FPS
Network: Wi-Fi / Wired
Power Input: DC 12V/1A
Night Vision Distance: 30m
Pickup Distance: 5m
Housing Material: ABS, PC
Net Weight: About 723g
Dimensions: Aboutt 153mm*185mm*293mm

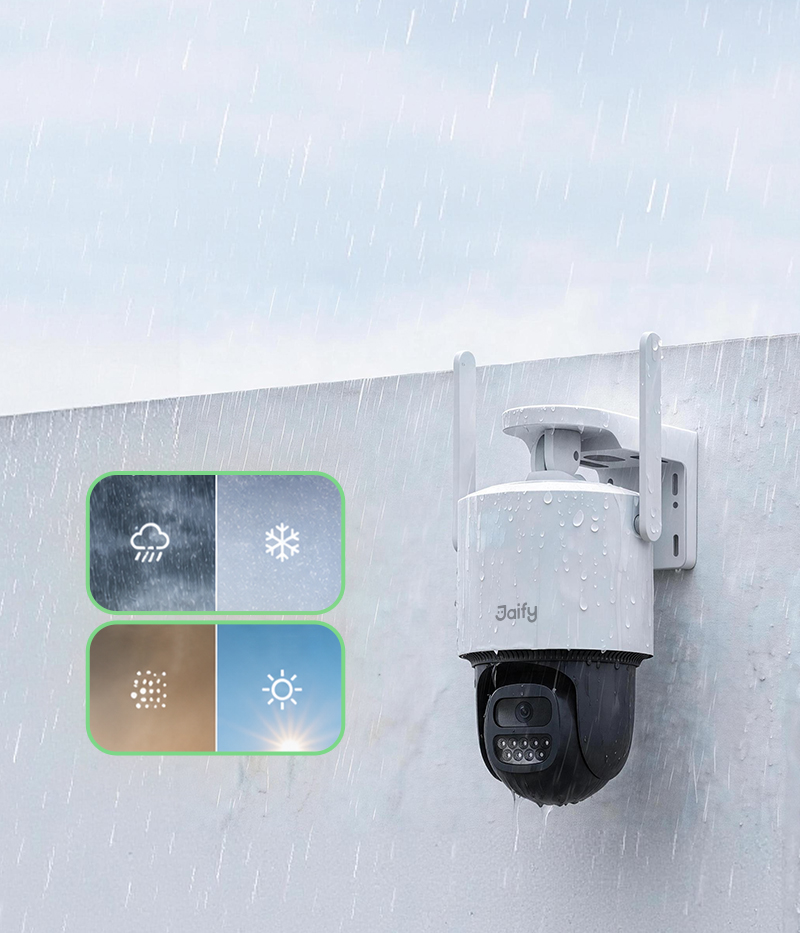

IP Grade: IP66

M2-3MP

Resolution: 2K(3MP)
Image Sensor: 1/2.8" High-performance Sensor
Lens: 4mm@F2.0
FOV: Diagonal:101°, Horizontal:84°, Vertical:45°
Fill Light: 6*850nm IR fill lights&4*white led fill lights
Night Vision: Full-color/Infrared/Dual-light alert
Recording Storage: Local TF card storage; Cloud storage
Voice Intercom: Two-way voice intercom
Max. Resolution: 2304*1296
Frame Rate: 20 FPS
Network: Wi-Fi
Power Input: DC 5V/1A
Night Vision Distance: 10m
Pickup Distance: 5m
Housing Material: ABS, PC
Net Weight: About 206g
Dimensions: About 115mm*74mm*74mm
IP Grade: IP5X

C2-3MP

Resolution: 2K(3MP)
Image Sensor: 1/2.8" High-performance Sensor
Lens: 4mm@F2.0
FOV: Diagonal: 101°, Horizontal: 84°, Vertical: 45°
Fill Light: 4*850nm IR fill lights&4*white led fill lights
Night Vision: Full-color/Infrared/Dual-light alert
Recording Storage: Local TF card storage; Cloud storage
Voice Intercom: Two-way voice intercom
Max. Resolution: 2304*1296
Frame Rate: 20 FPS
Network: Wi-Fi
Power Input: DC 12V/1A
Night Vision Distance: 30m
Pickup Distance: 5m
Housing Material: ABS, PC，Metals
Net Weight: About 287g
Dimensions: About 63mm*63mm*155mm
IP Grade: IP66

Specs

Camera

Model: S2-3WL

Resolution: 2K(3MP)

Image Sensor: 1/2.9" High-performance Sensor

Min. Illumination:

Color: 0.05Lux @ (F1.6, AGC ON), 0 Lux with light

B/W: 0.05 Lux @ (F1.6, AGC ON), 0 Lux with IR

Lens: 4mm@F1.6

Field Of View: Diagonal: 95°, Horizontal: 79°, Vertical: 42°

Shutter Speed: Self-adaptive shutter

Fill Light: 9*850nm IR fill lights&9*white led fill lights

Night Vision: Full-color/Infrared/Dual-light alert

DNR: 3D DNR

Audio Input: Built-in microphone

Audio Output: Built-in speaker

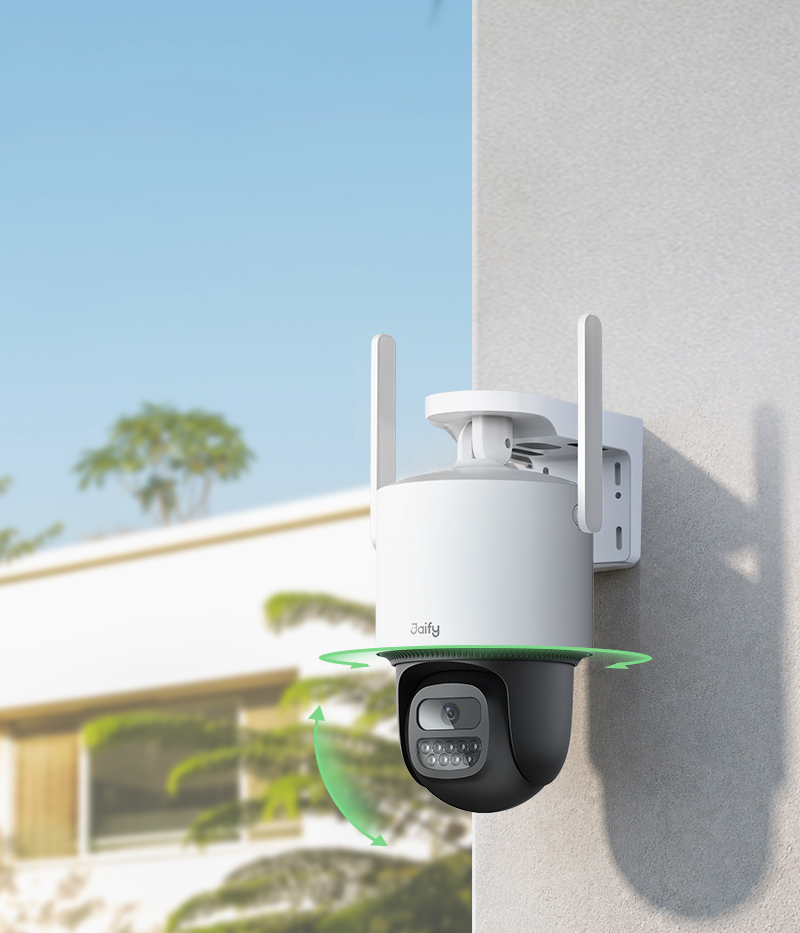

PT Angle: Horizontal 355°, vertical 95°

Video Storage: TF card storage/Cloud storage


Max. Resolution: 2304*1296

Frame Rate: 12 FPS

Buttons & Interfaces

Network Interface: 1*RJ45 (10M / 100M Adaptive Ethernet Port)

Storage Interface: 1*TF card storage interface (max. 256G)

Power Interface: 1*DC 12V/1A power interface

Button: 1*Reset button

Compression

Video Compression: H.265/H.264

Audio Compression: G.711A

Network

One-touch Provisioning: Wi-Fi network provisioning

Protocol: JFTECH cloud proprietary protocol

Interface Protocol: JFTECH cloud proprietary protocol

General Function: Anti-Flicker, Dual-Stream, Mirroring, Password Protection, Watermark

Wireless Parameters

Wi-Fi Standard: IEEE 802.11b/g/n

Frequency Range: 2.412 GHz ~ 2.484 GHz

General

Operating Conditions: -10℃ ~ 50℃, Humidity 95% or less (non-condensing)

Power Supply: DC 12V/1A

Night Vision Distance: 30m

Pickup Distance: 5m

Material: ABS, PC

Net Weight: About 723g

Dimensions: About 153mm*185mm*293mm

IP Grade: IP66
