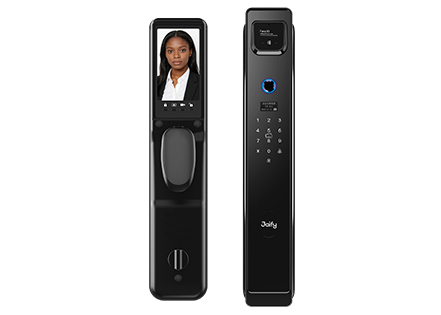

Product Model

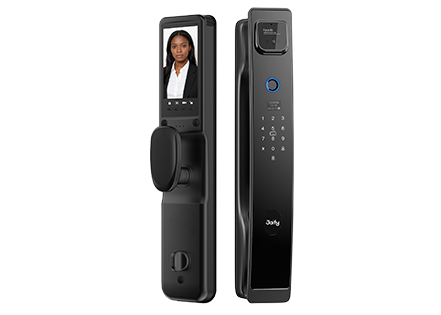

Model: DLVF-P20-PRO
Color: black
Material And Specifications
Panel material: Aluminum Alloy + IMD (PET + ABS)

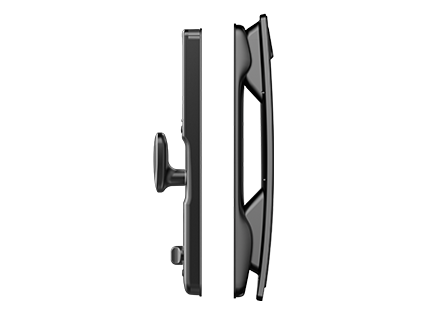

Panel Dimensions: Front Panel: 419 x 73 x 59 mm; Rear Panel: 408 x 84 x 30 mm

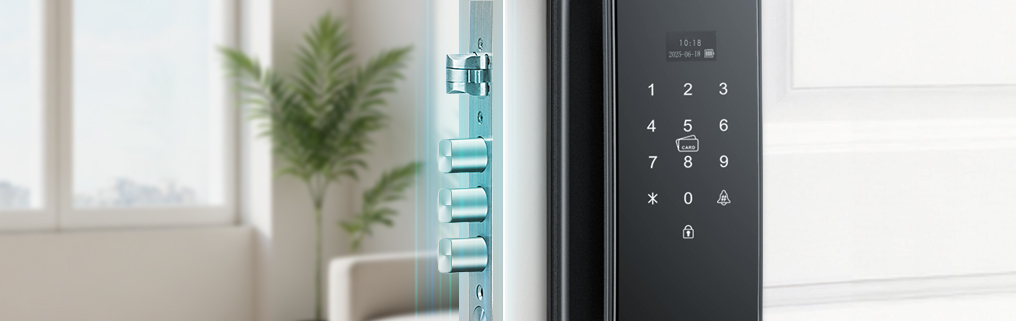

Lock Body Type: Fully automatic lock body, standard/high-security
Door Opening Direction: No need to distinguish between left- and right-hand door opening
Door Thickness: 50 mm – 100 mm; some configurations require an extra-long square bolt to be ordered separately
Lock Cylinder Grade: Class C genuine cylinder lock core
Unlocking Method

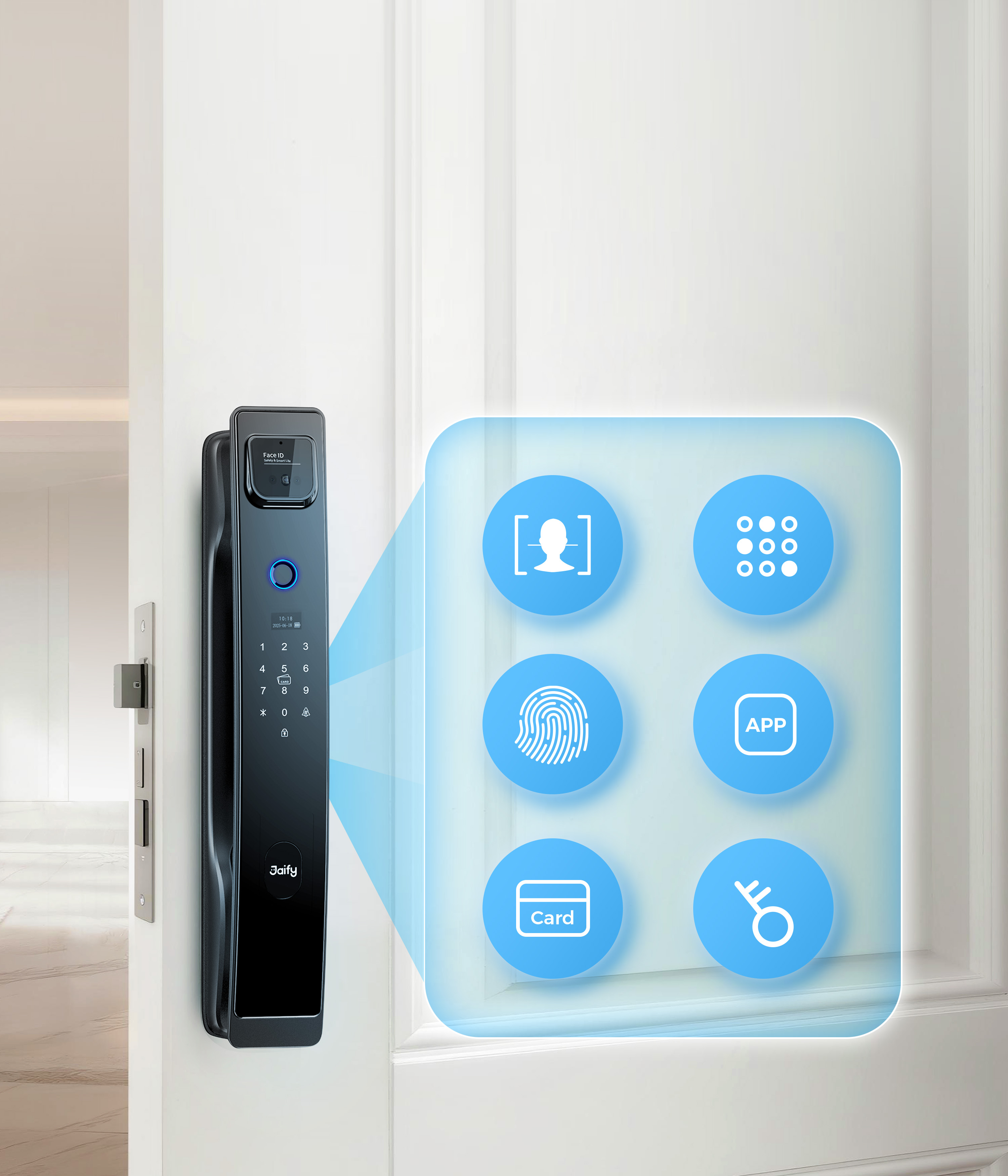

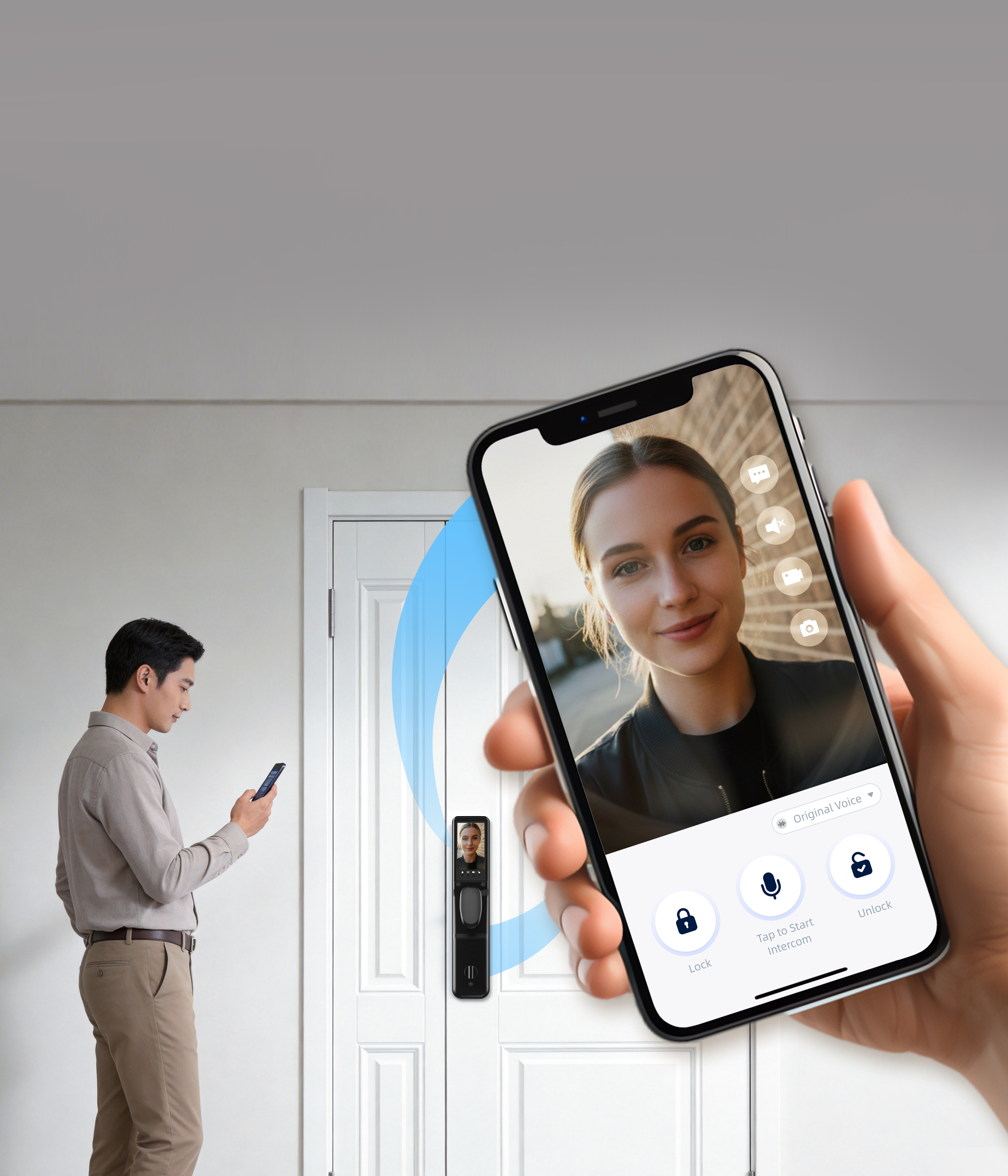

Unlock Methods: Face recognition, fingerprint, card, passcode, temporary passcode, remote unlocking via JAIFY app, emergency key
User Capacity: Administrator users: 10 sets (including fingerprints, passcodes, and cards);
Regular users: 240 sets (including fingerprints, passcodes, and cards)
Lock Notifications: Doorbell call notifications, door-opening alerts, low-battery warnings Lock

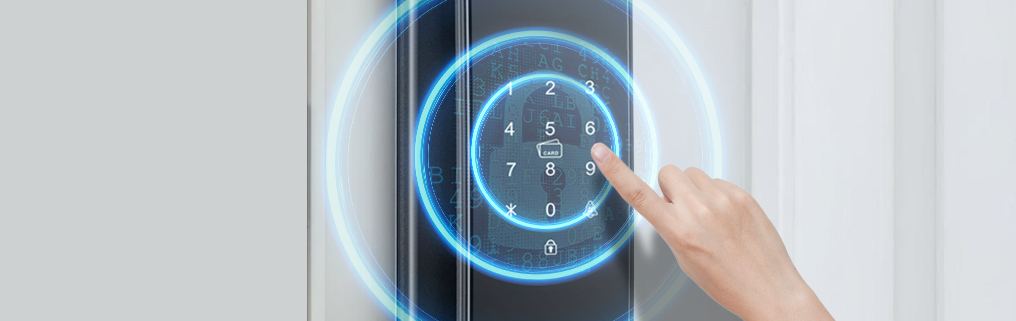

Security Features: Comprehensive lock-body status monitoring, C-class mortise lock cylinder, emergency mechanical unlocking, dual-factor authentication for unlocking, virtual key design, lock trial error locking alarm, pry-alarm for the door lock, and linger-alarm

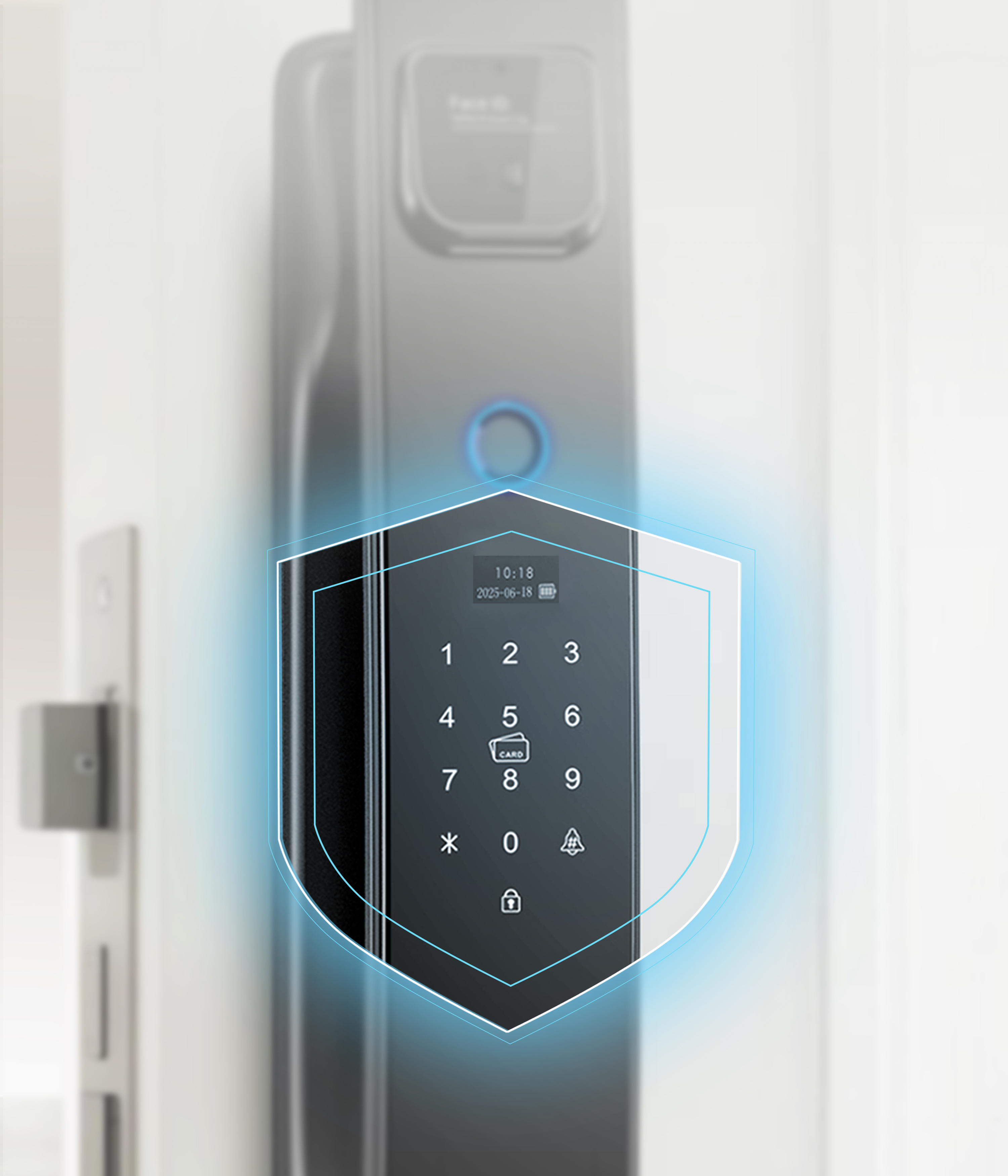

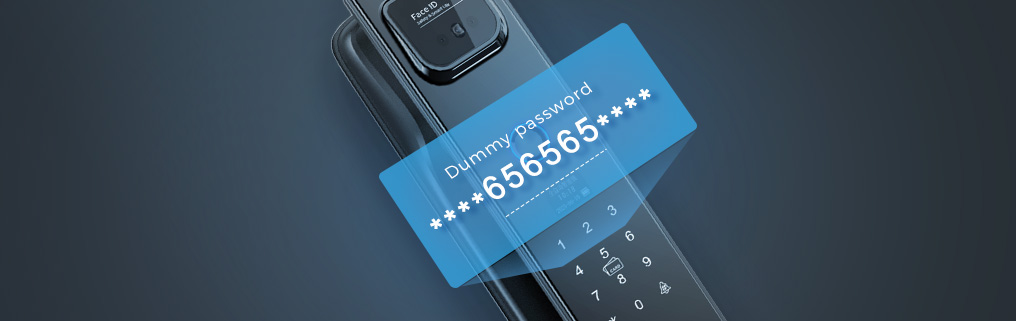

Passcode: Passcode length: 6–10 digits; Virtual key: Includes the correct passcode, with a maximum total length of 16 digits.
Video
Internal Screen Size: 4.5 inches
Internal Screen Type: IPS, non-touch
Screen Resolution: 480*864
Night Vision: 2m infrared night vision
Video Storage: Supports cloud storage as a value-added service

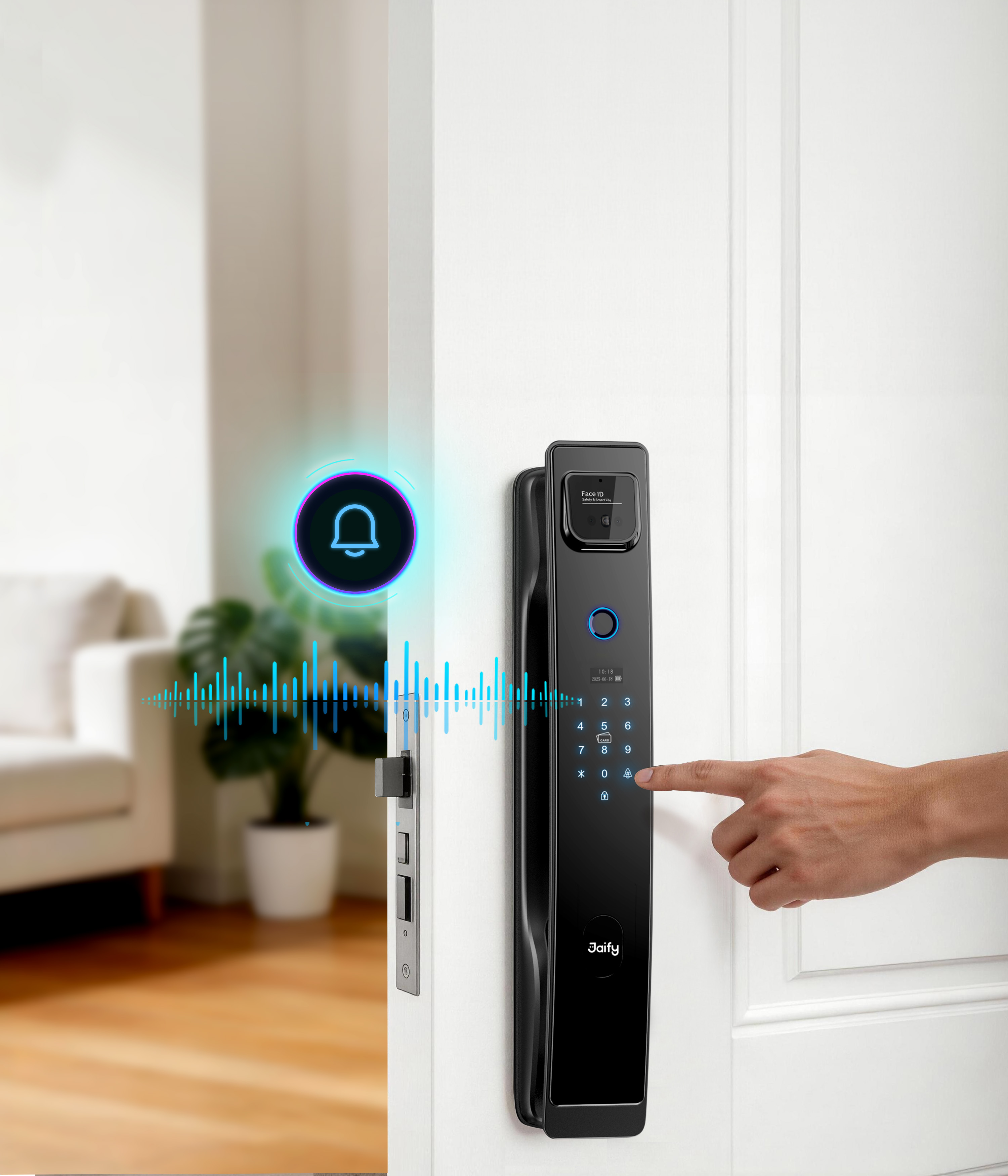

Calling: Touch-sensitive electronic doorbell; one-touch call via doorbell button; app allows you to set voice-changing intercom
Encoding: H.264
Detection: Radar-based detection; automatically starts recording and sends an alert when it detects someone lingering
Smart Algorithms: Supported, including package monitoring, pet detection, and facial recognition tagging
Face Module

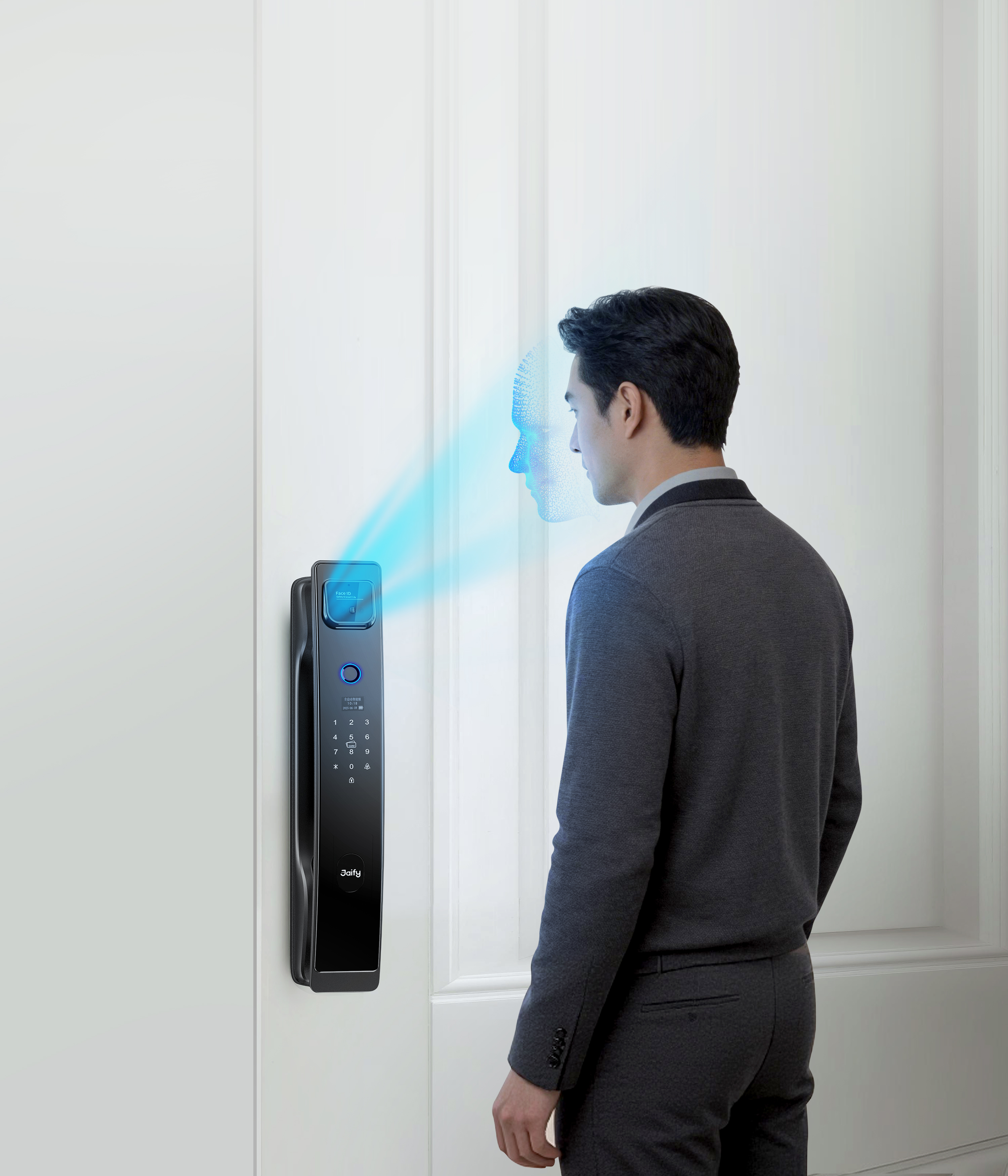

Facial Recognition: 3D depth facial recognition; capable of recognizing individuals within 1 meter in front of the lock, with a height range of 1.2–2 meters.
Recognition Speed: < 1.5 seconds
Recognize: Supports Changes in Hairstyle and Glasses-Wearing
Wireless Frequency: 2.4 GHz
Configuration Mode: Bluetooth network setup, Wi-Fi networking.
Fingerprint
Fingerprint Collector: Semiconductor Fingerprint Collector
Matching Time(s): ＜0.3s
False Rejection Rate: ＜0.01%
Resolution: 500 DPI
General
Smart home Integration: Supported, connects to the JAIFY app
Battery: 4200 mAh

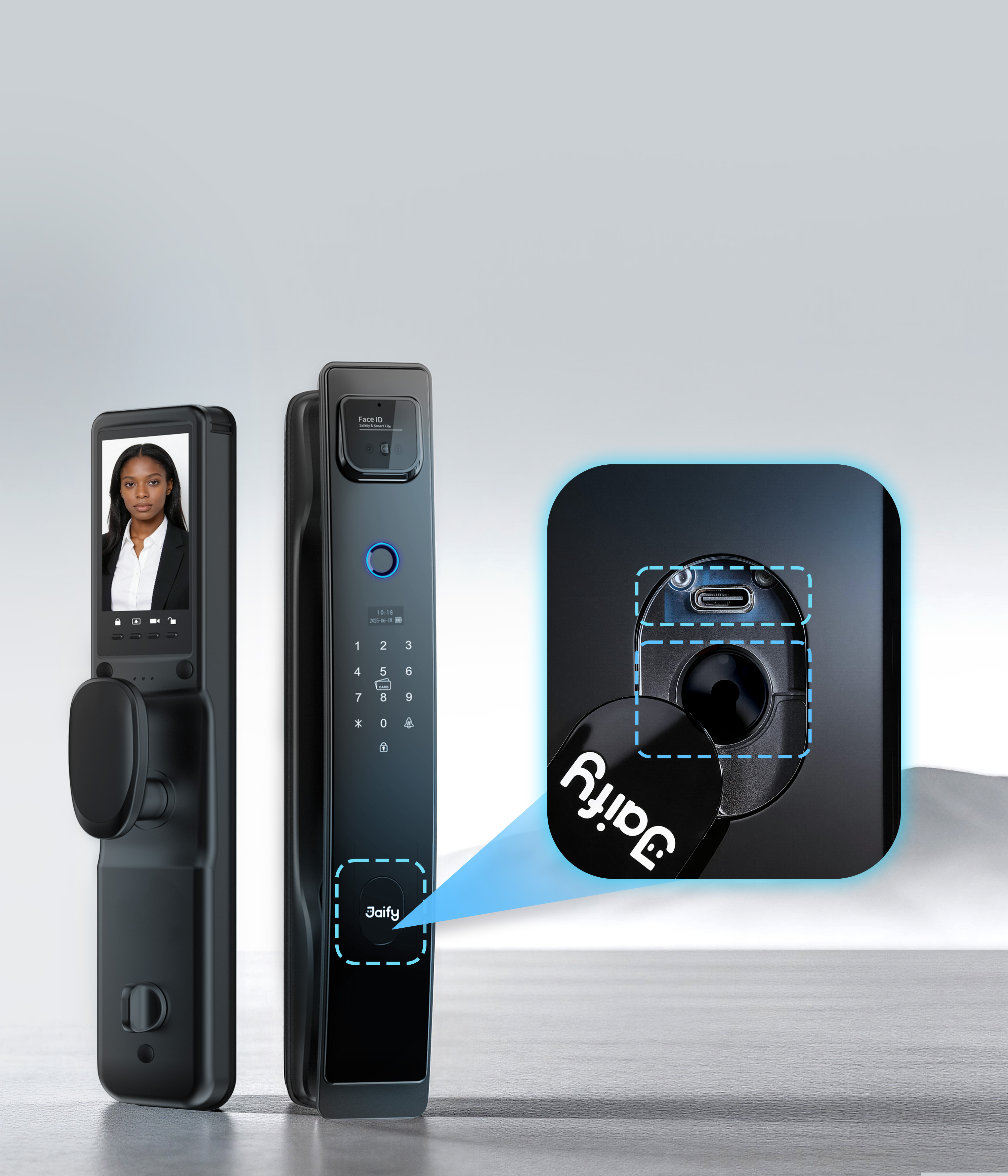

Emergency Power Supply: USB Type-C, 5V
Information Security: Encrypted video stream transmission; facial recognition and password data stored
Temperature: -25°C to 65°C
