Smart keypad Door Lock with Handle

Products Comparison

DLBS-Q20-PRO

Panel material: Aluminum Alloy + IMD
Panel Dimensions: Front Panel: 365*75*21mm Rear Panel: 365*75*25mm
Lock Body Type: Double open double active 6068 lock body, standard/high-security
Door Thickness: 50 mm – 100 mm; some configurations require an extra-long square bolt to be ordered separately
Unlock Methods: fingerprint, card, passcode, temporary passcode, Bluetooth unlocking via JAIFY app, emergency key
User Capacity: Administrator users: 10 sets (including fingerprints, passcodes, and cards); Regular users: 240 sets (including fingerprints, passcodes, and cards)
Passcode: Passcode length: 6–10 digits; Virtual key: Includes the correct passcode, with a maximum total length of 16 digits.
Voice navigation: Support for voice navigation settings
Configuration Mode: Add to the app via Bluetooth
Fingerprint Collector: Semiconductor Fingerprint Collector, Matching Time< 0.3s, False Rejection Rate< 0.01%, Resolution500 DPI
Smart home Integration: Supported, connects to the JAIFY app
Battery: 4*AA batteries
Emergency Power Supply: Micro USB 5V

DLVF-P20-PRO

Panel material: Aluminum Alloy + IMD (PET + ABS)
Panel Dimensions: Front Panel: 419 x 73 x 59 mm,Rear Panel: 408 x 84 x 30 mm
Lock Body Type: Fully automatic lock body, standard/high-security
Door Thickness: 50 mm – 100 mm; some configurations require an extra-long square bolt to be ordered separately
Unlock Methods: Face recognition, fingerprint, card, passcode, temporary passcode, remote unlocking via JAIFY app, emergency key
User Capacity: Administrator users: 10 sets (including fingerprints, passcodes, and cards);Regular users: 240 sets (including fingerprints, passcodes, and cards)
Passcode: Passcode length: 6–10 digits; Virtual key: Includes the correct passcode, with a maximum total length of 16 digits.
Voice navigation: Support for voice navigation settings
Internal Screen Size: 4.5 inches,480*864
Detection: Radar-based detection; automatically starts recording and sends an alert when it detects someone lingering
Smart Algorithms: Supported, including package monitoring, pet detection, and facial recognition tagging
Facial Recognition: 3D depth facial recognition; capable of recognizing individuals within 1 meter in front of the lock, with a height range of 1.2–2 meters.
Configuration Mode:Bluetooth network setup, Wi-Fi networking.
Fingerprint Collector: Semiconductor Fingerprint Collector, Matching Time< 0.3s, False Rejection Rate< 0.01%, Resolution500 DPI
Smart home Integration: Supported, connects to the JAIFY app
Battery: 4200 mAh
Emergency Power Supply: USB Type-C, 5V

Specs

Product Model

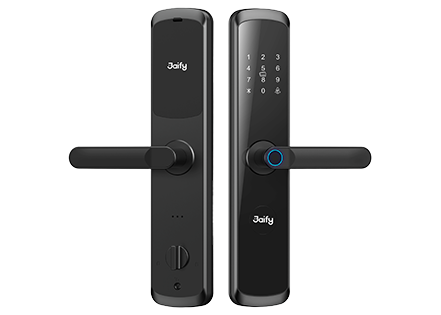

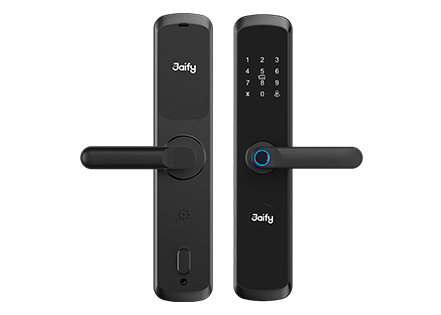

Model: DLBS-Q20-PRO

Color: black

Material And Specifications

Panel material: Aluminum Alloy + IMD

Panel Dimensions: Front Panel: 365*75*21mm; Rear Panel: 365*75*25mm

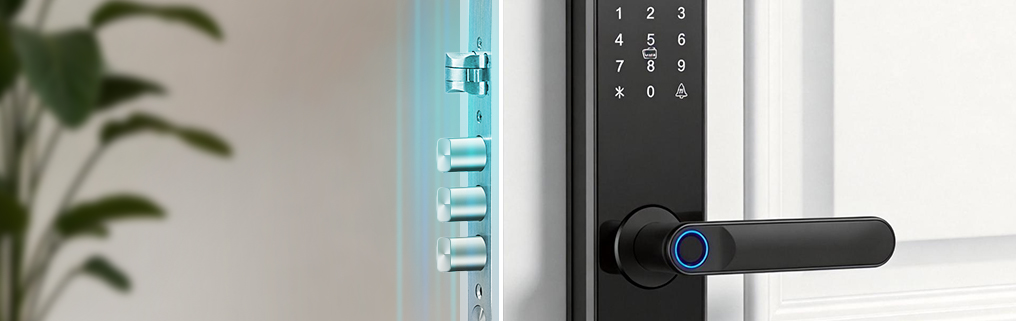

Lock Body Type: Double open double active 6068 lock body, standard/high-security

Door Opening Direction: No need to distinguish between left- and right-hand door opening

Door Thickness: 50 mm – 100 mm; some configurations require an extra-long square bolt to be ordered separately

Lock Cylinder Grade: Class C genuine cylinder lock core

Configuration Mode: Bluetooth network setup

Unlocking Method

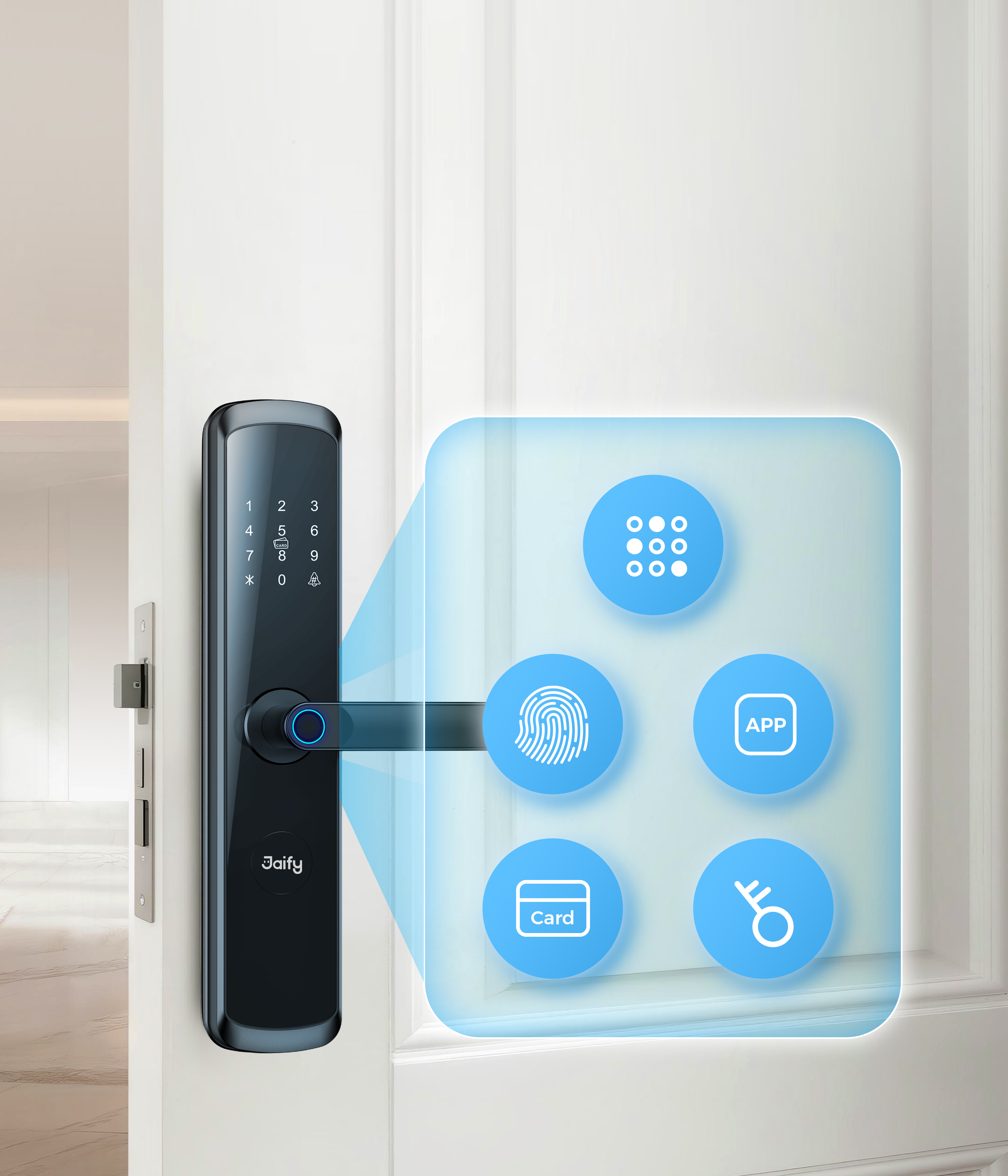

Unlock Methods: fingerprint, card, passcode, temporary passcode, unlocking via JAIFY app, emergency key

User Capacity: Administrator users: 10 sets (including fingerprints, passcodes, and cards);

Regular users: 240 sets (including fingerprints, passcodes, and cards)

Lock Message: Doorbell call, door-opening, low-battery warnings Lock

Security Features: Comprehensive lock-body status monitoring, C-class mortise lock cylinder, emergency mechanical unlocking, dual-factor authentication for unlocking, virtual key design, lock trial error locking alarm, pry-alarm for the door lock, Low voltage alarm

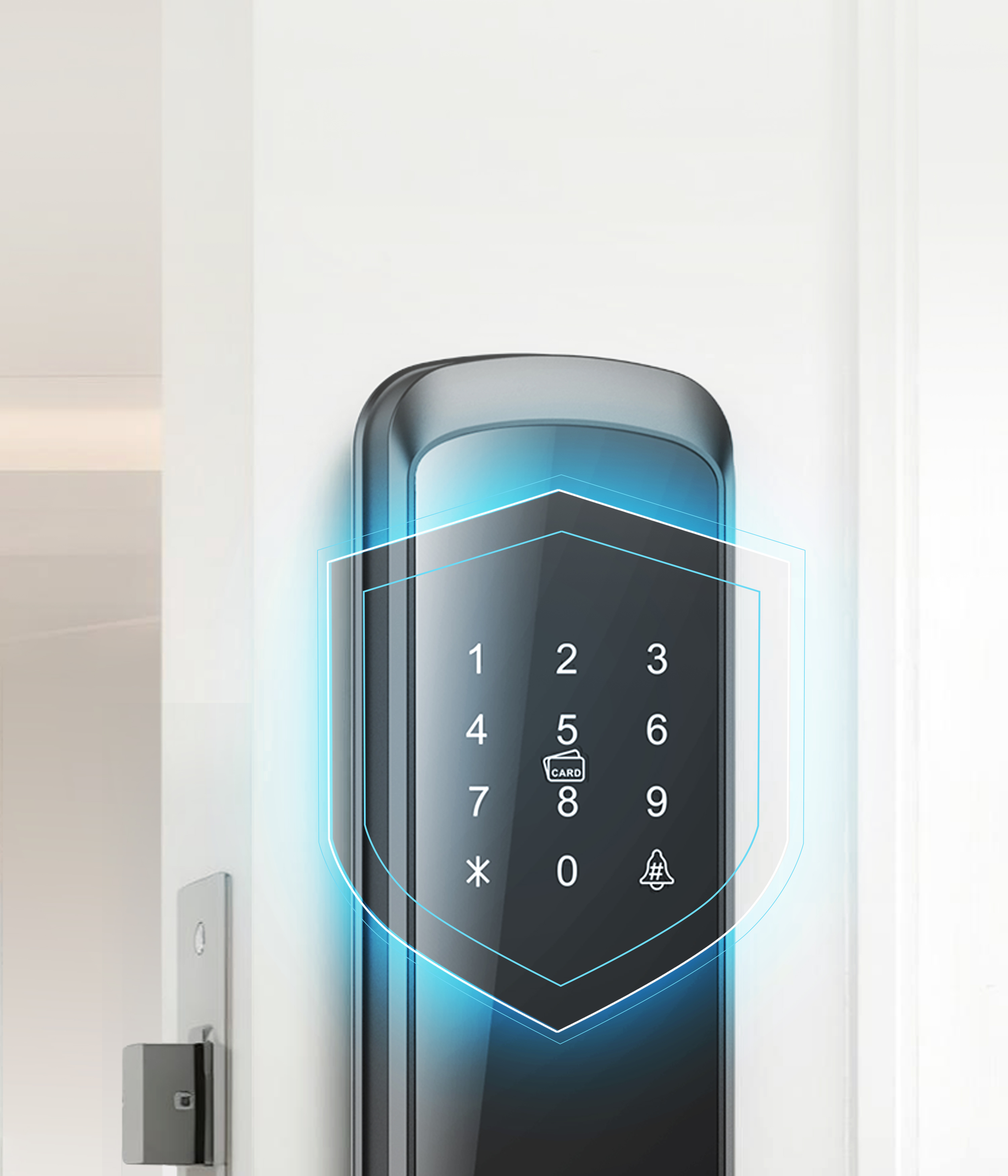

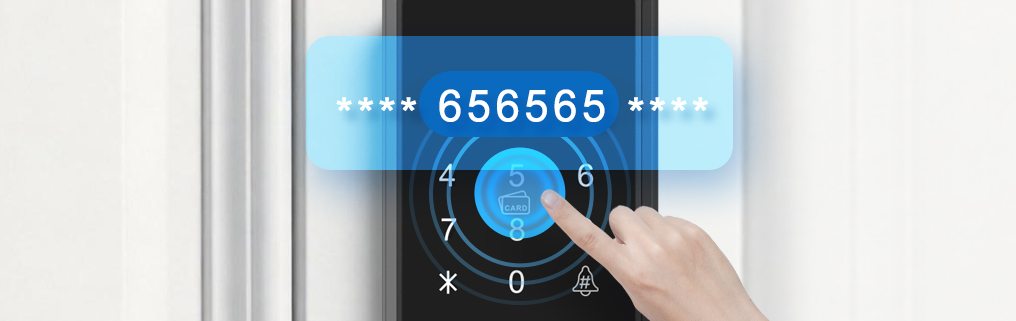

Passcode: Passcode length: 6–10 digits; Virtual key: Includes the correct passcode, with a maximum total length of 16 digits.

Audio

Voice navigation: Support for voice navigation settings

Fingerprint

Fingerprint Collector: Semiconductor Fingerprint Collector

Matching Time (s): < 0.3 s

False Rejection Rate: < 0.15%

Resolution: 500 DPI

General

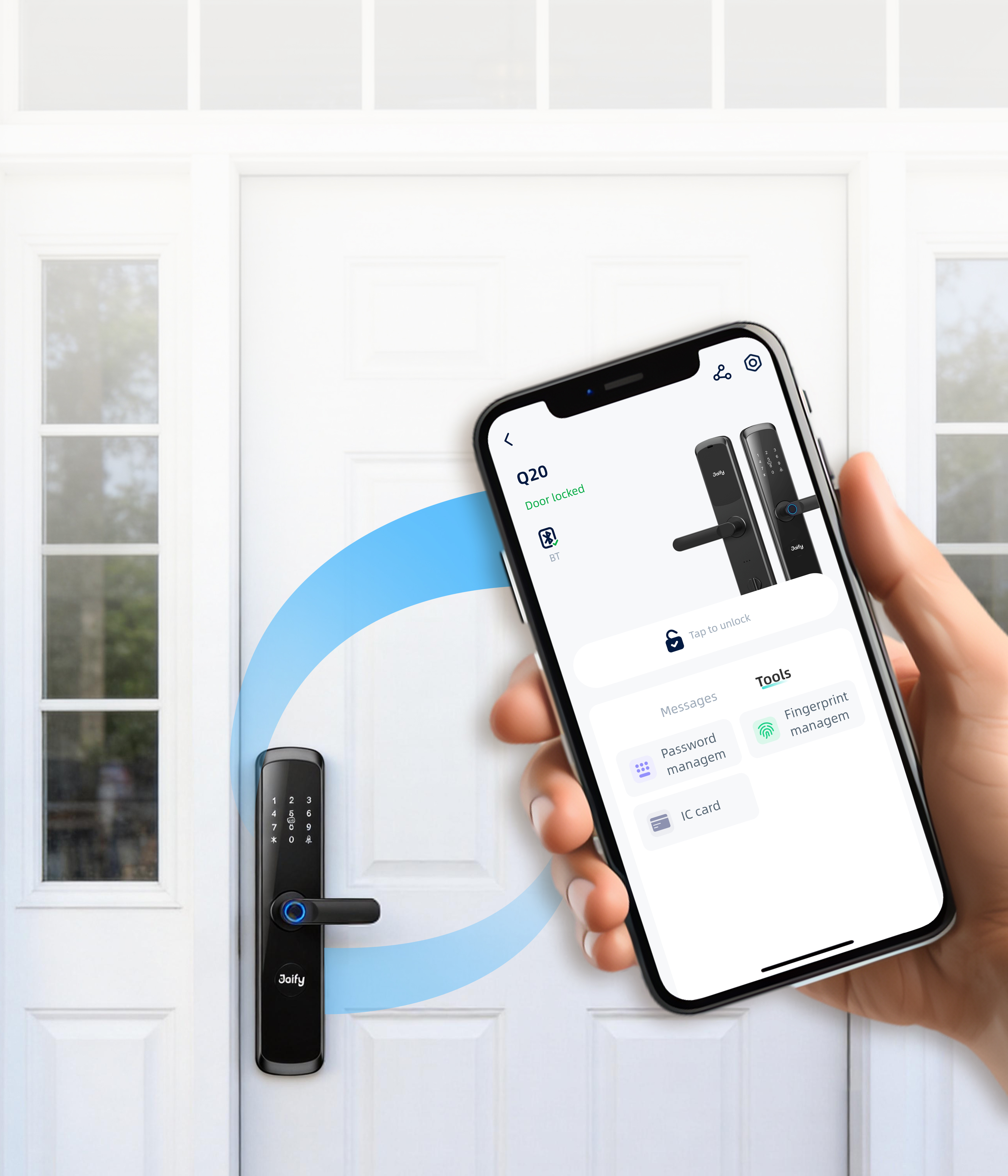

Smart home Integration: Supported, connects to the JAIFY app

Card: Mifare one Card

Battery: 4*AA batteries

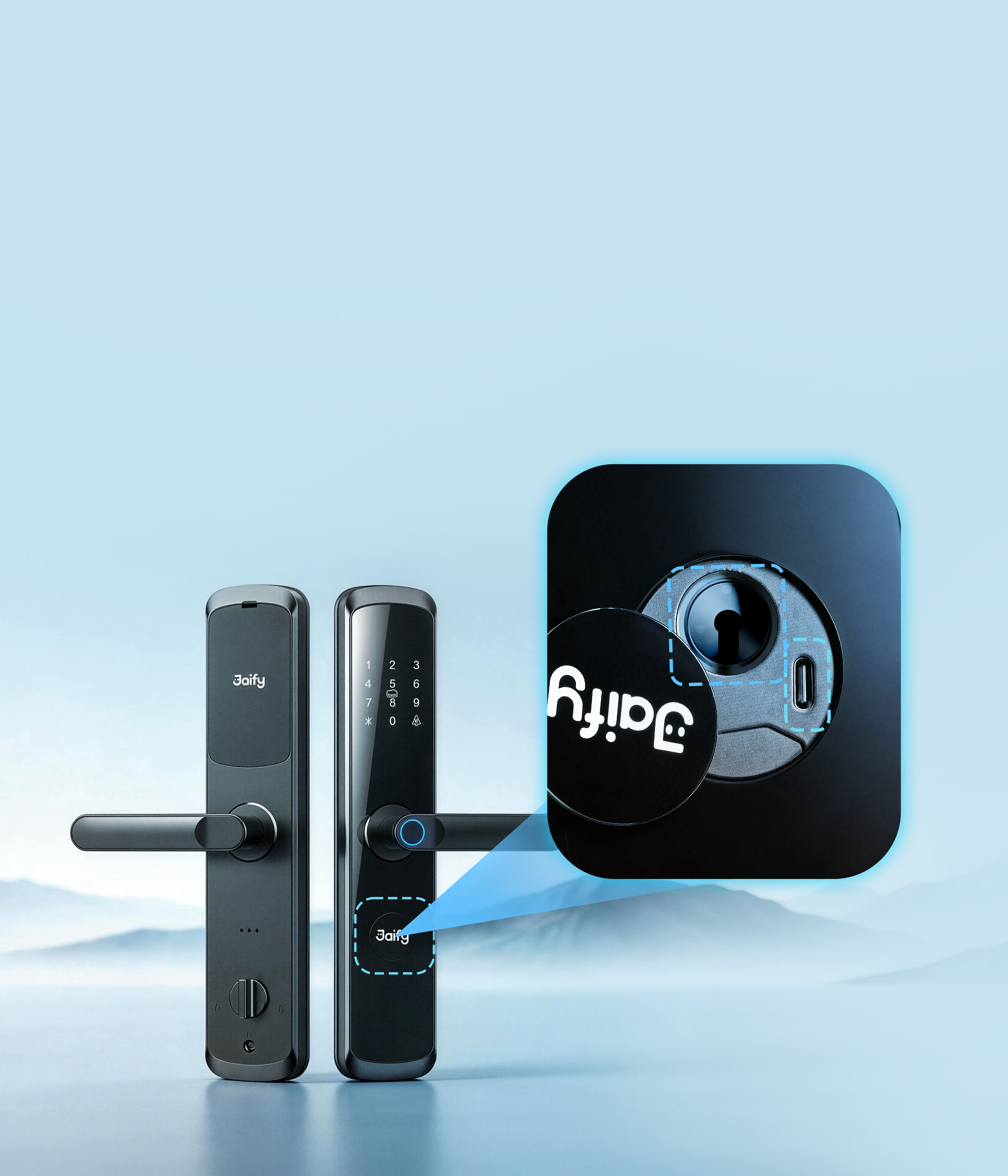

Emergency Power Supply: USB Type-C 5V

Temperature: -25°C to 65°C
